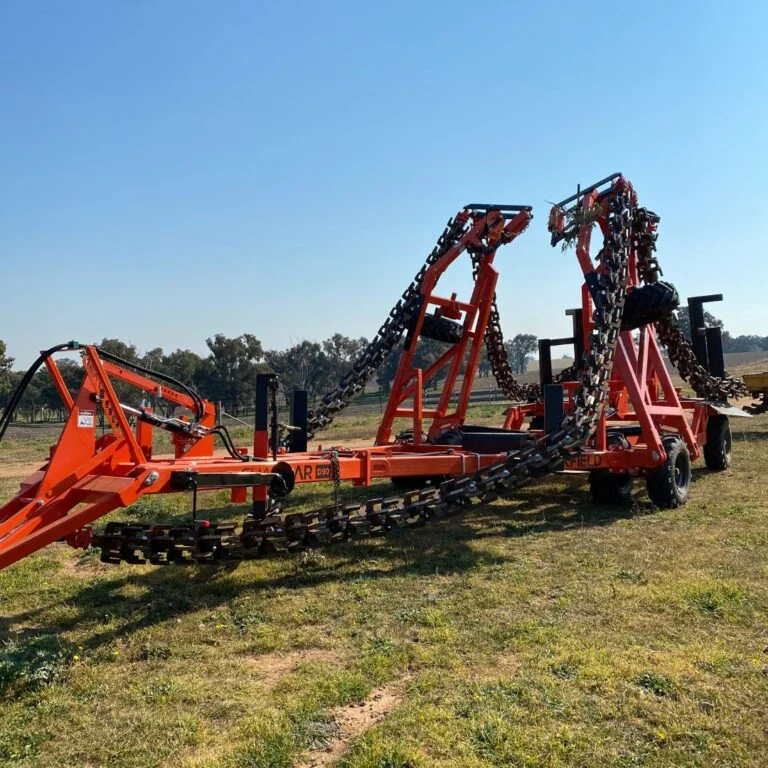

BROOKFIELD® ChainBar
Tried. Tested. Perfected.
See it at Newdegate Field Days, WA (2-3 September), then take the full brochure home in your inbox.
ChainBar at a glance
| Model | Working width | Transport width | Weight | Horsepower |
|---|---|---|---|---|
| D40 | 4.0m | 2.45m | 1.3–2.5t | 40–140hp |
| D60 | 6.5m | 2.50m | 4.2–5.8t | 80–240hp |
| D90 | 9.2m | 3.49m | 6.1–8.5t | 90–315hp |
| D130 | 13.0m | 4.70m | 6.8–10.0t | 130–450hp |
| D130D | 13.0m | 3.49m | 7.6–10.9t | 140–460hp |
| D150 | 15.0m | 6.05m | 7.4–11.0t | 150–550hp |
| D150D | 15.0m | 3.49m | 8.7–12.4t | 160–560hp |
| D185D | 18.4m | 5.10m | 10.3–14.8t | 180–650hp |
Weight and horsepower vary with the chain fitted. D-series models double-fold to a 3.49m transport width. Operating speed 8–18 km/h, chain dependent. 45-degree working angle, tool-less chain tensioning, heavy duty swivel bearings and a cross-over front pull.
Chain options: Prickle Chain, Dog Leg Chain, DC60 Rigid Flex, the Continuous Cutting Edge range (CD5 and LD6) and Knuckle Chain. Ask the team on the stand which chain suits your soil type.
Ask about Strategic Tillage — stubble knockdown, residue mulching, then optional incorporation.
Get the ChainBar brochure by email
Leave your details and the brochure is in your inbox before you’re back at the ute.
