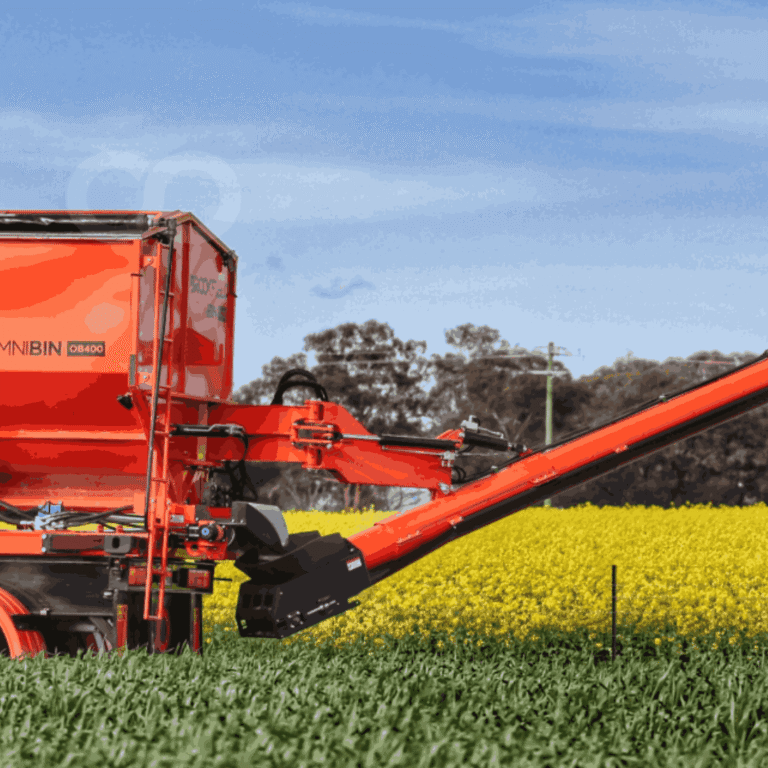

BROOKFIELD® OmniBin
Tried. Tested. Perfected.
See it at Newdegate Field Days, WA (2-3 September), then take the full brochure home in your inbox.
OmniBin range
| Model | Litres | Wheat / urea (av.) | Fertiliser (av.) | Tray length required | Tare weight |
|---|---|---|---|---|---|
| OB200 | 20,000 | 15.5t | 20t | 6.3m / 21′ | 1,900kg |
| OB320 | 32,000 | 25t | 32t | 10.1m / 34′ | 2,800kg |
| OB400 | 40,000 | 31t | 40t | 12.6m / 42′ | 3,800kg |
2.5m wide, 2.2m high. Kohler CH270 drive. Side conveyor OBEC50, 80 or 110 — reach 4.5m, 6.9m or 9.1m.
OmniBin Mini range
| Model | Litres | Wheat / urea (av.) | Fertiliser (av.) | Tray length required | Tare weight |
|---|---|---|---|---|---|
| OB60 | 6,000 | 4.5t | 6t | 2.6m / 8′6″ | 950kg |
| OB90 | 9,000 | 7t | 9t | 3.8m / 12′6″ | 1,400kg |
| OB120 | 12,000 | 9t | 12t | 5.1m / 16′9″ | 1,850kg |
| OB150 | 15,000 | 11.5t | 15t | 6.3m / 20′9″ | 2,300kg |
2.5m wide, 3.1m high. Hydraulic drive from truck or tractor. Side conveyor OBEC50 — reach 3.6m to 4.5m. An 8m side conveyor is available on the OB150.
Also known as a seed and super or grouper bin. Full-length Quickclean contamination-free conveyor belt, remote control single-person operation, roll top tarp, light tare weight and fully powder coated. The Mini range runs two compartments; the OB320 and OB400 split into two bins. Models on the stand vary by event — the full range is in the brochure.
Tray lengths require an additional 250mm for trailers with a headboard.
