Built in Cowra
ChainBar
From stubble management to seedbed preparation.
A versatile disc chain toolbar that works with the Brookfield chain range and adapts to your soil conditions.
Overview
Built around your operation.

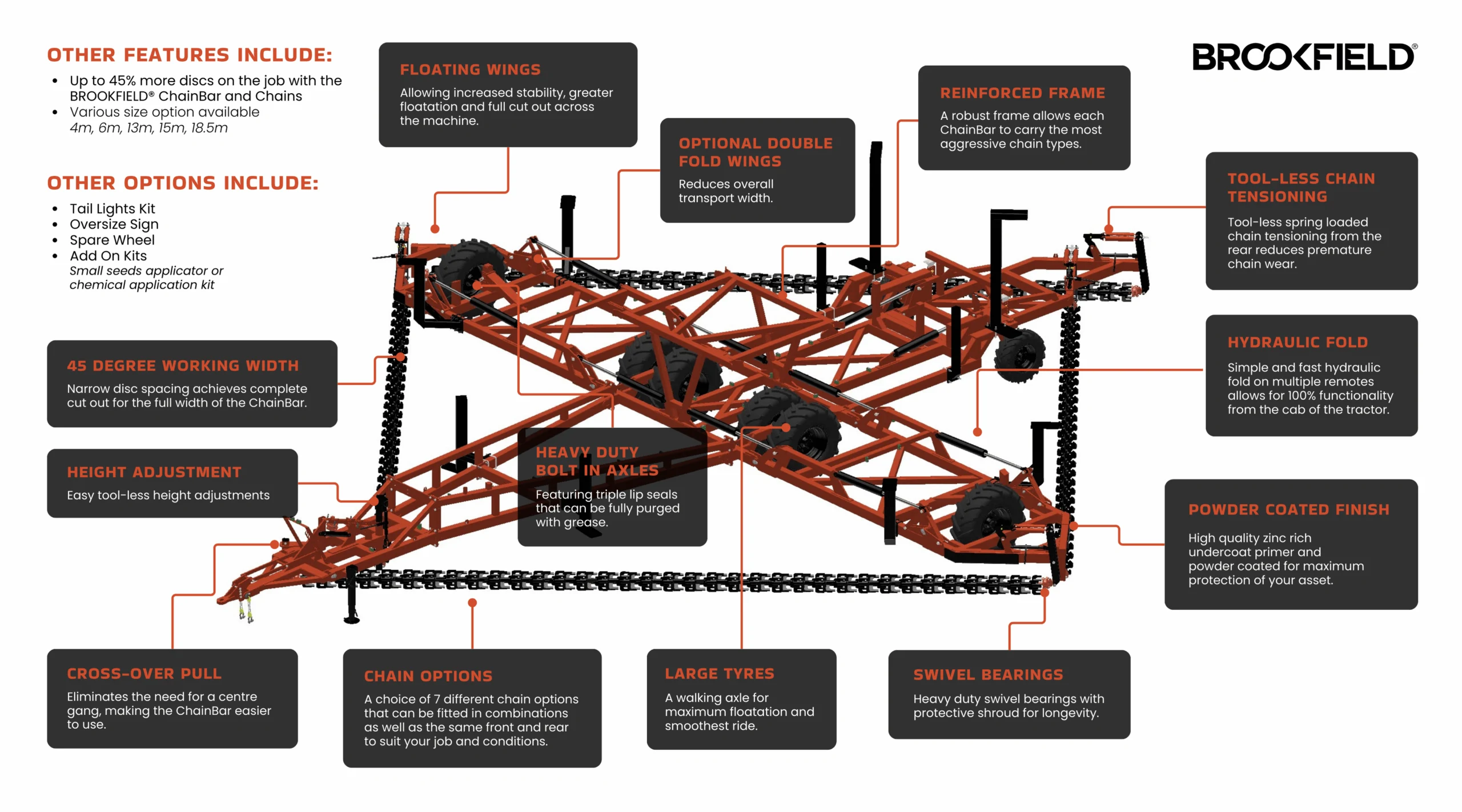

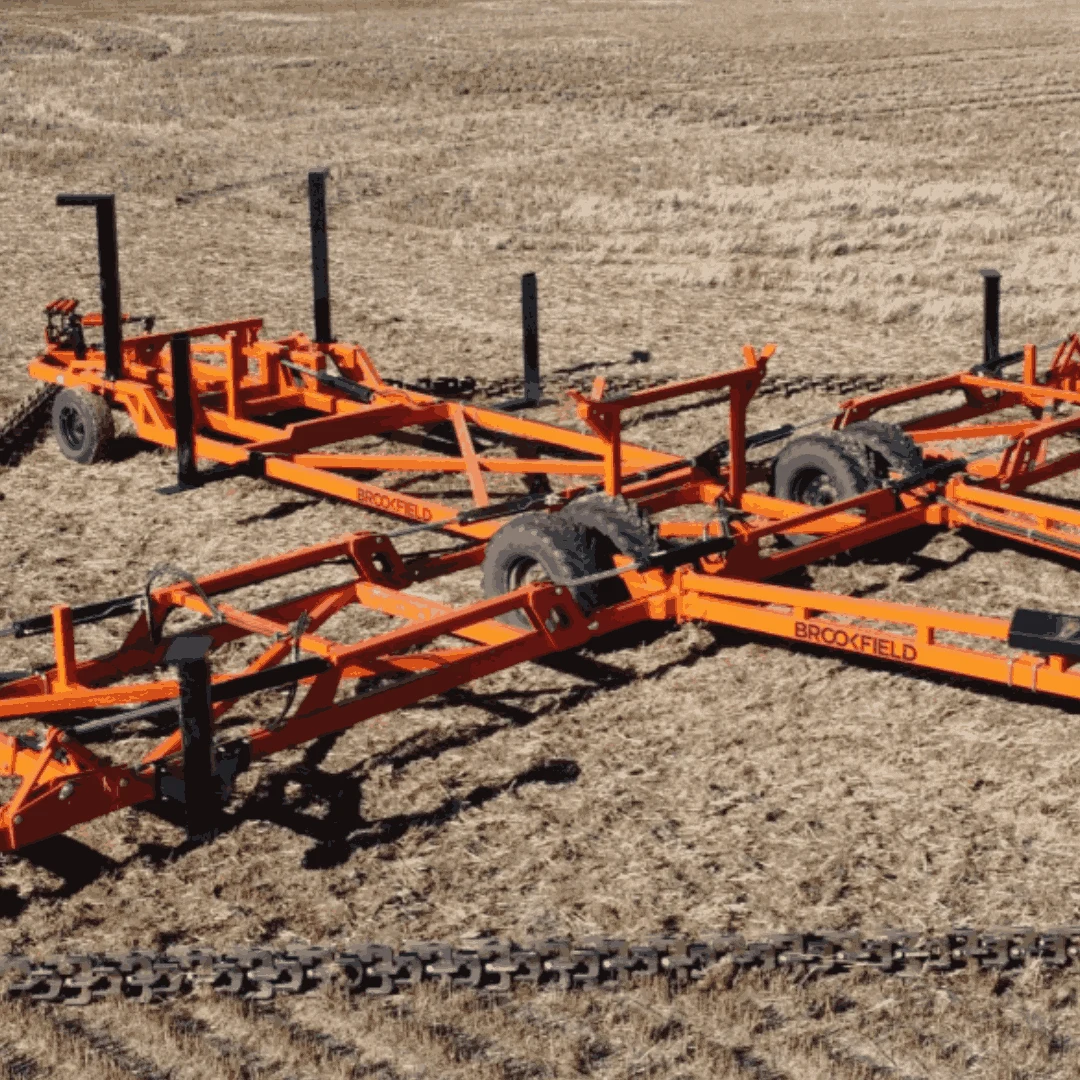

The BROOKFIELD® ChainBar is trusted by farmers across Australia and globally as a proven solution to improve soil health and streamline the tillage-to-seeding process. Designed to work seamlessly with the full range of BROOKFIELD® Chains, this versatile toolbar handles everything from post-harvest stubble management to pre-sowing soil conditioning , all in a single pass.
With configurations of up to seven Chains, the ChainBar is engineered to adapt to a wide range of soil types and farming conditions, giving you a tailored approach to strategic tillage.
Why the ChainBar is Essential for Your Tillage & Seeding Program:
-
Reuse Leftover Stubble

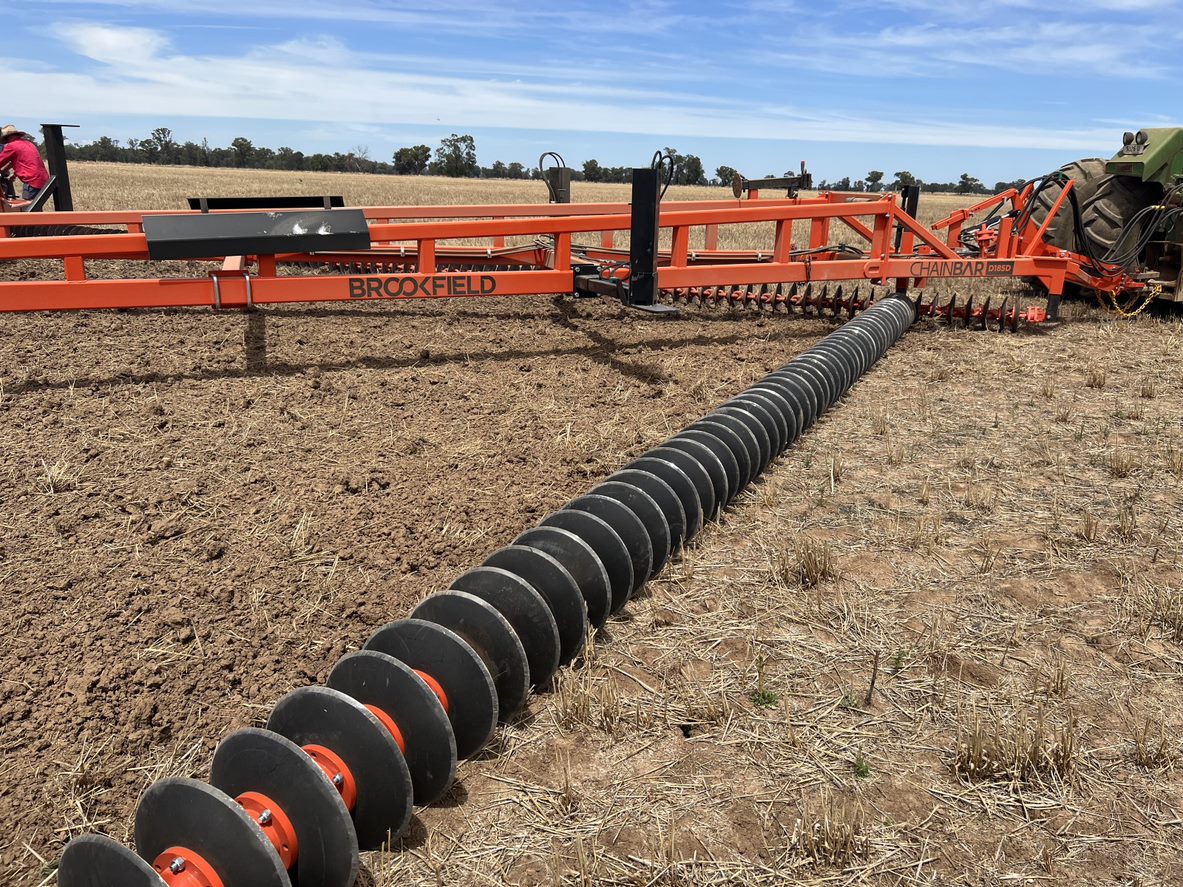

ChainBar fitted with Disc Chain of your choice ensures that your leftover stubble is laid down and crushed to create a mulch-like protective layer over your soil reducing evaporation and boosting microbial activity.
-
Weed-Free Seeding
Early summer pass with ChainBar fitted with Disc Chain will encourage weeds to come up early so they can be removed with another pass before seeding.

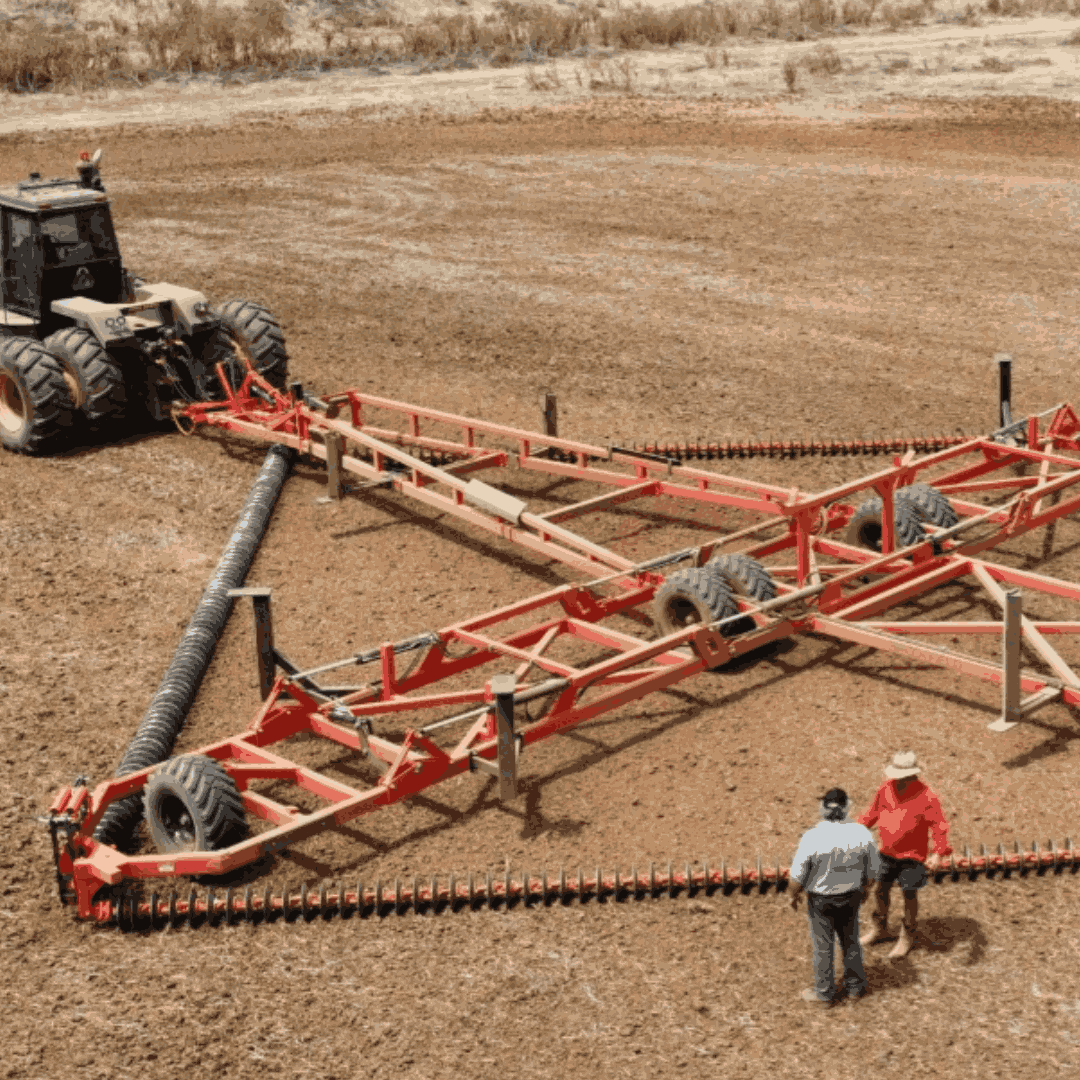

Our Gallery
Product Information
ChainBar / Specifications
Find your fit.
Choose any two models to compare side by side, or explore one in detail.
Model specifications
Compare working dimensions, transport dimensions and weight.
| Specification | D40 | D60 | D90 | D130 | D130D** | D150 | D150D** | D185D** |
|---|---|---|---|---|---|---|---|---|
| Working Width | 4.00m / 13.12ft | 6.50m / 21.33ft | 9.20m / 30.18ft | 13.00m / 42.65ft | 12.90m / 42.32ft | 15.00m / 49.21ft | 15.30m / 50.20ft | 18.40m / 60.37ft |
| Transport Width | 2.45m | 2.50m | 3.49m | 5.05m | 3.49m | 6.05m | 3.49m | 5.10m |
| Transport Height | 2.30m | 3.50m | 3.80m | 4.70m | 4.30m | 5.10m | Confirm transport height for your folding configuration | 4.90m |
| Transport Length | 7.10m | 9.70m | 9.60m | 12.85m | 13.00m | 14.80m | 14.95m | 19.00m |
| Weight*(tonne) | 1.2 – 4.2 | 4.2 – 5.8 | 6.1 – 8.5 | 6.8 – 10.0 | 7.6 – 10.9 | 7.4 – 11.0 | 8.7 – 12.4 | 10.3 – 14.8 |
Scroll sideways to see all columns, and down for all specifications.
*Range from weight of bar to weight of bar with heaviest chain.
** Indicates 5 section (Double – fold)
*** Indicates double fold tail
Chain and model guide
Compare the published guide values for each chain and model combination.
| Specification | D40 | D60 | D90 | D130/D | D150/D | D185D |
|---|---|---|---|---|---|---|
| PC18 | 40 | 64 | 90 | 132 | 152 | 180 |
| DLC36 | 52 | 83 | 117 | 171 | 197 | 234 |
| DC60 | 72 | 115 | 162 | 237 | 273 | 324 |
| DC64 | 120 | 192* | 270 | 396 | 456 | 540 |
| DC72 | 80 | 128 | 180 | 264 | 304 | 360 |
| DC90 | 140 | 224* | 315 | 462 | 532 | 630 |
| KC96 | 80 | 128 | 180 | 264 | 304 | 360 |
Scroll sideways to see all columns, and down for all specifications.
Some D60 models may not be compatible with this chain range.
May vary depending on chain and soil type.
Find the right setup.
Confirm specifications and options with the Brookfield team.
1800 774 274 sales@brookfield.net.auChains & Tooling
The Right Chain for Every Farming Need
Get the full benefit of the BROOKFIELD® Chain and Tooling system designed to work seamlessly with your ChainBar setup. Simply measure the length of chain you require, place your order, and we’ll deliver it fully assembled and ready to go on your farm. Perfect for upgrades or specific soil applications.
PC18 - 18KG/m Prickle Chain
The lightest chain in the BROOKFIELD® range, the Prickle Chain is ideal for minimum and light‑till applications. It is also a farmer favourite when paired with the Small Seeds Applicator, ensuring even distribution and gentle soil contact.
DLC36 - 36Kg/m Dog Leg Chain

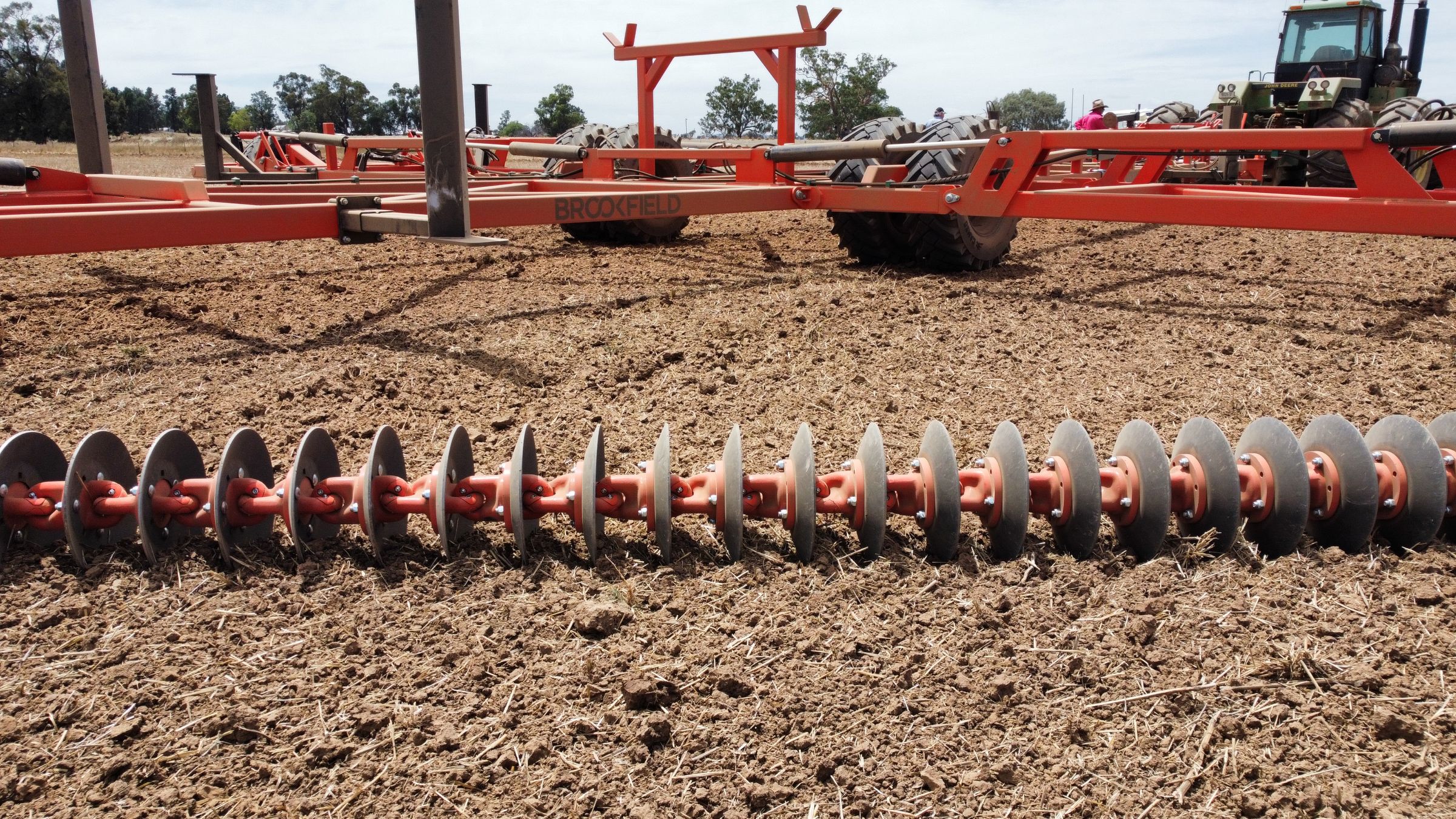

CD5 - 70Kg/m Continuous Cutting Edge Cutting Disc - Replaceable Discs
LD6 - 70 Kg/m Continuous Cutting Edge Levelling Disc - Replaceable Discs
The LD6 Levelling Disc delivers maximum tilth creation and excellent performance in heavy soils. Its replaceable discs and flexible chain design make it a top choice for high‑usage operations and contractors.

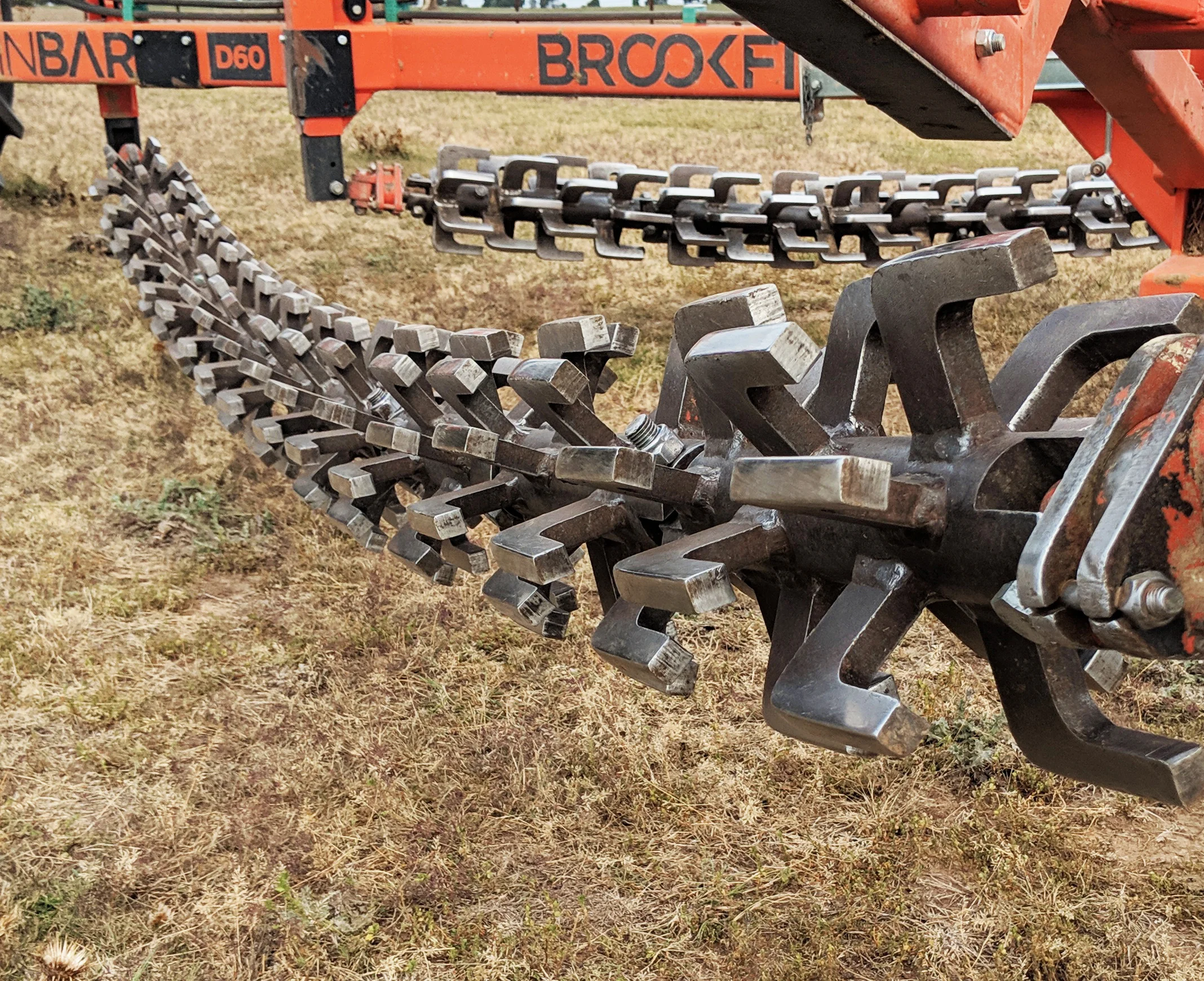

KC96 - 96Kg/m Knuckle Chain
The heavy‑duty Knuckle Chain is a zero‑till option suitable for all soil types. It excels at maximum stubble mulching with minimal soil disturbance, a proven way to improve germination rates and retain soil moisture.

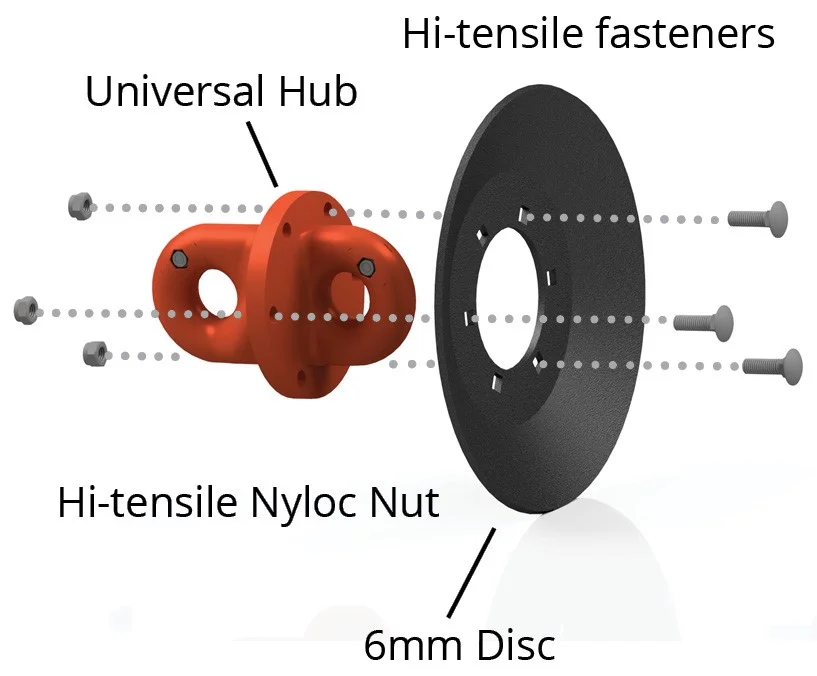

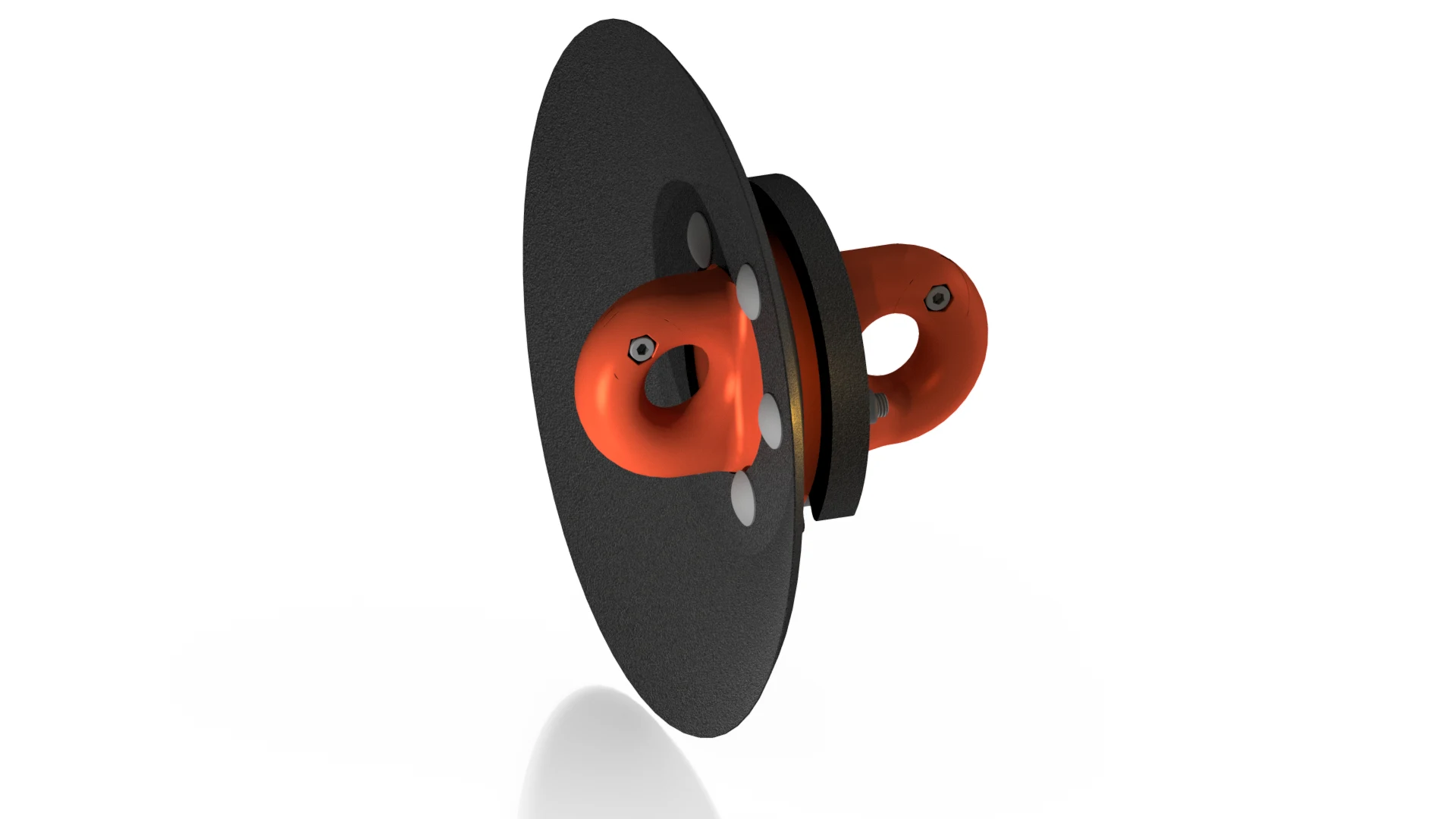

Disc Chain - Weights

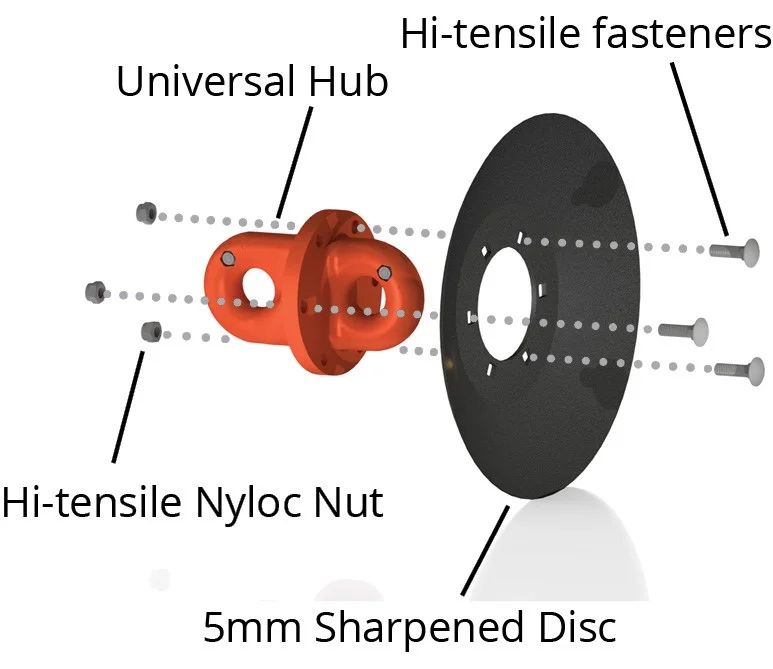

Our new Continuous Cutting Edge Disc Chains are available in multiple weight configurations to suit different soil types and tillage requirements: 1 weight = 15 kg/m | 2 weights = 30 kg/m 3 weights = 45 kg/m
Real Results
The Challenge
For over 40 years, Merriwa merino wool farmer James battled the spread of Plains Grass, a drought-hardy, low-nutrition species that overtook his pastures and compromised wool quality, fertility, and overall flock health. The thick, clumping grass dominated his paddocks, harbouring pests like Slater bugs that destroyed lucerne and forced repeated, costly chemical use with diminishing results. After years of reliance on spraying, James needed a more sustainable solution to restore productive, high-quality pasture species on his black soil and improve moisture retention post-drought.
The Solution
Brookfield ChainBar D60 fitted with Knuckle Chain
The sheer cost of chemicals to address the farm meant that this was never going to be a total, single solution. The most significant consideration for James was to find a tillage implement that had the weight to tackle the structural density of Plains Grass and that would be able to withstand the rockiness of the terrain.
The Results
James took delivery of his Brookfield ChainBar in early 2025, and the results were immediate.
- Total elimination of Bathurst Burr
- Plains Grass height reduced by initial pass and completely flattened with second pass to create a rich organic matter
- New edible pasture and grasses are now germinating
- Solution without costly chemical reliance
- Total elimination of Bathurst Burr
- Plains Grass height reduced by initial pass and completely flattened with second pass to create a rich organic matter
- New edible pasture and grasses are now germinating
- Solution without costly chemical reliance
