Built in Cowra
OmniBin Generation II
Ask for a weight. Get a weight.
Automatic target-weight shut-off, live compartment weights and remote operation for seed and fertiliser handling.
- Total capacity
- 43,400 litres
- Compartments
- 4
- Average wheat or urea
- 34 tonnes
- Required flat top
- 12.3 metres
- Container points
- 20′ & 40′
Made for the way you work
More control over every load
Active Control System
Load to your target weight
Set the product weight you need. OmniBin Generation II delivers to that figure and shuts off at the target, records the load, and syncs the data back to the office.

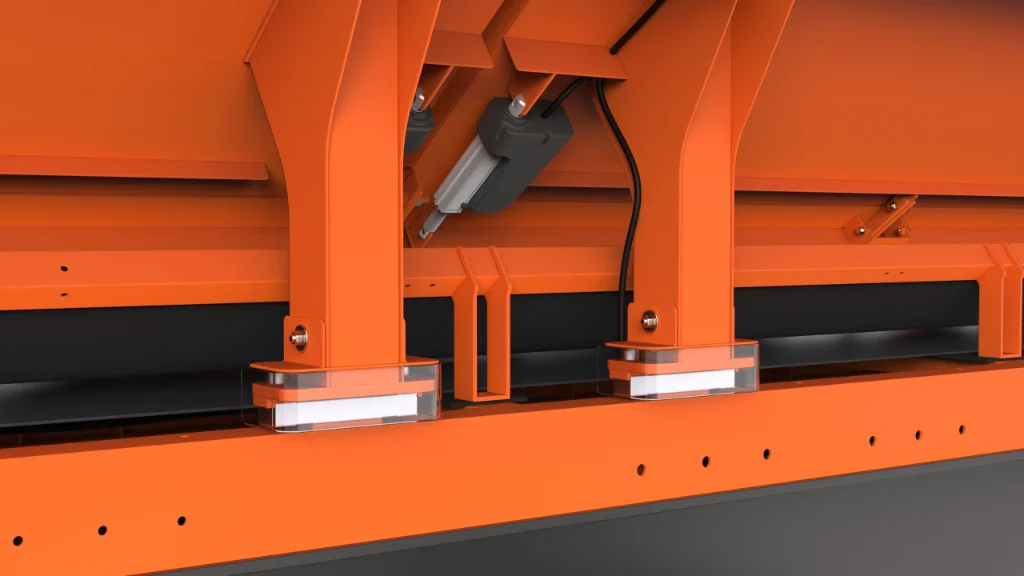

Integrated load cells
See the weight in each compartment
Load cells feed weight back in real time for each compartment, so the operator can see what is on board and how it is sitting across the bin, on the screen and on the remote.

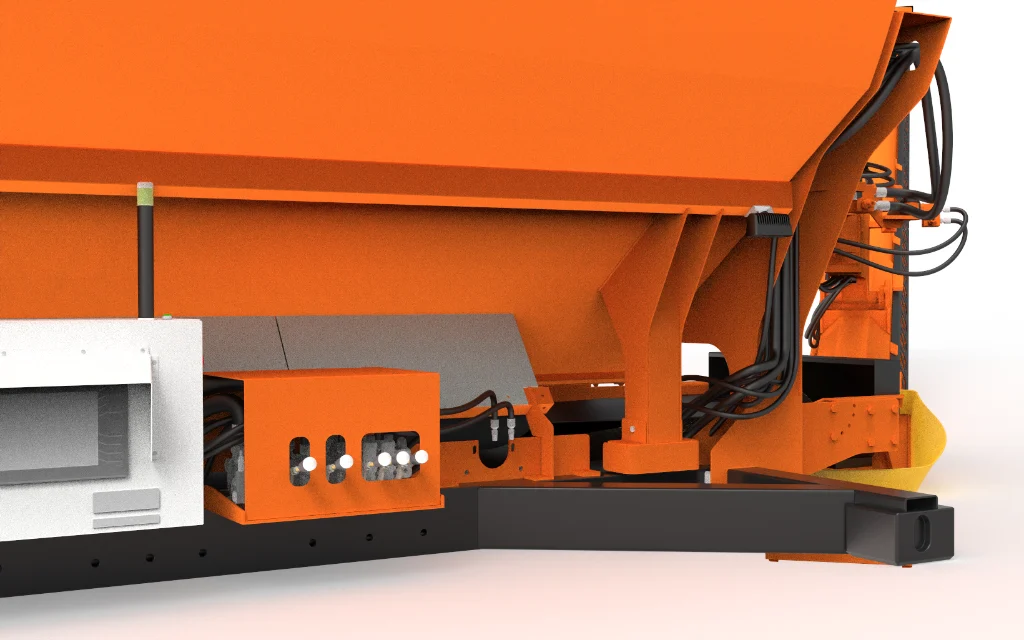

Electronic hydraulic control
Control hydraulic movement precisely
Proportional flow control on the hydraulic functions, so speed and movement are set rather than nudged. Control is electronic end to end.
Specifications
OmniBin Generation II specifications
Published specifications for OmniBin Generation II.
| Specification | OmniBin Generation II |
|---|---|
| Total capacity | 43,400 L |
| Compartments | 4 |
| Average wheat or urea capacity | 34 t |
| Required flat-top length | 12.3 m |
| Container mounting points | 20 ft and 40 ft |

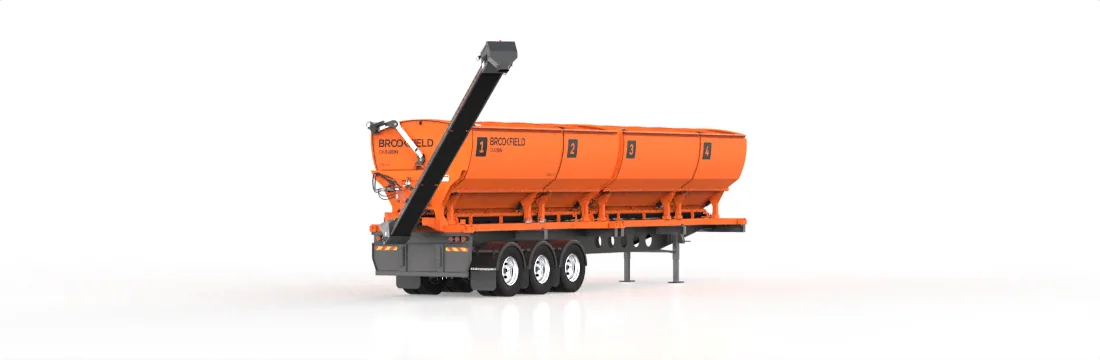

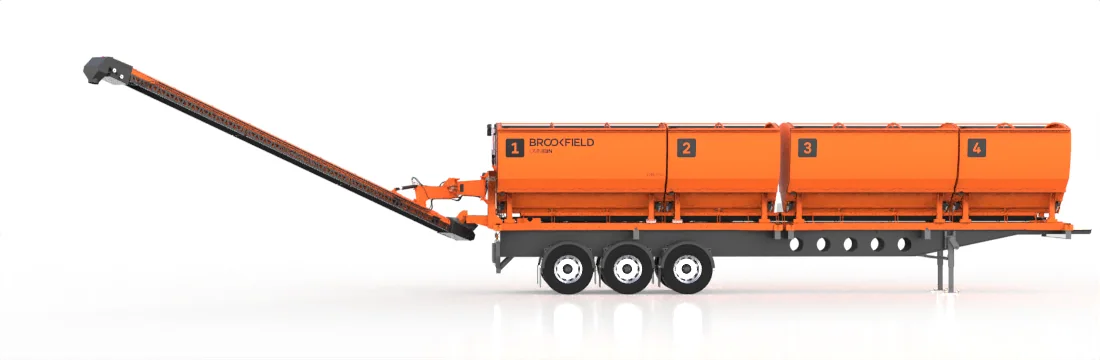

Explore OmniBin Generation II
Take a closer look.
Drag to rotate. Tap a point to explore.
Swipe through the product renders, or use the arrow keys.
Preparing rotation…
Drag to rotate. Tap a point to explore.
Keyboard & viewing help
When the product view is focused, use Left and Right arrow keys to turn, Up and Down to change elevation, plus and minus to zoom, and Home to reset. Press and hold an angle button with a pointer, Enter or Space to keep turning. Release to stop. When zoomed in, drag to pan. Press Escape to close a feature detail. Open Advanced view for elevation, automatic rotation and marker visibility.
Advanced view
Product renders shown. Camera movement follows the supplied render angles.

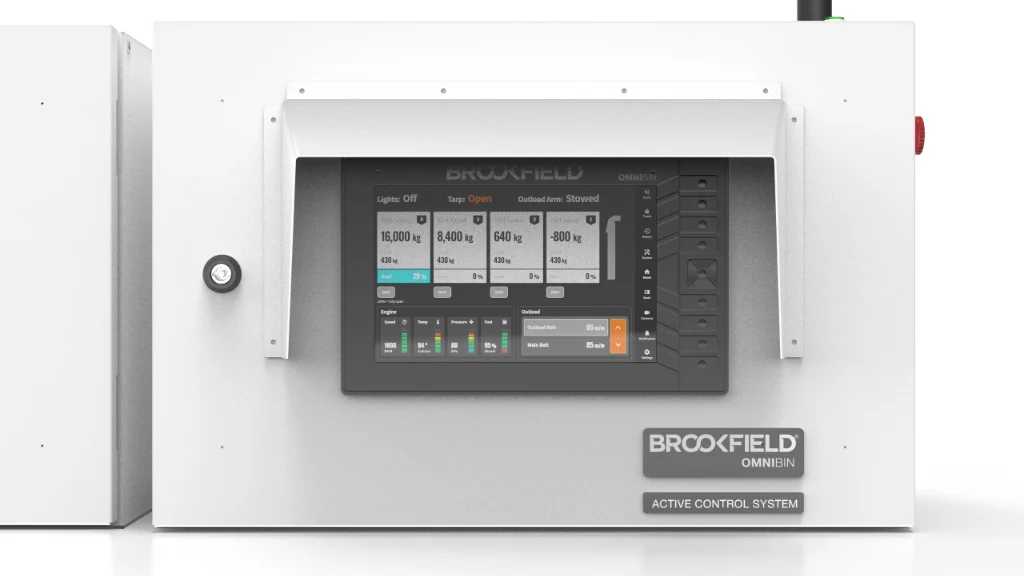

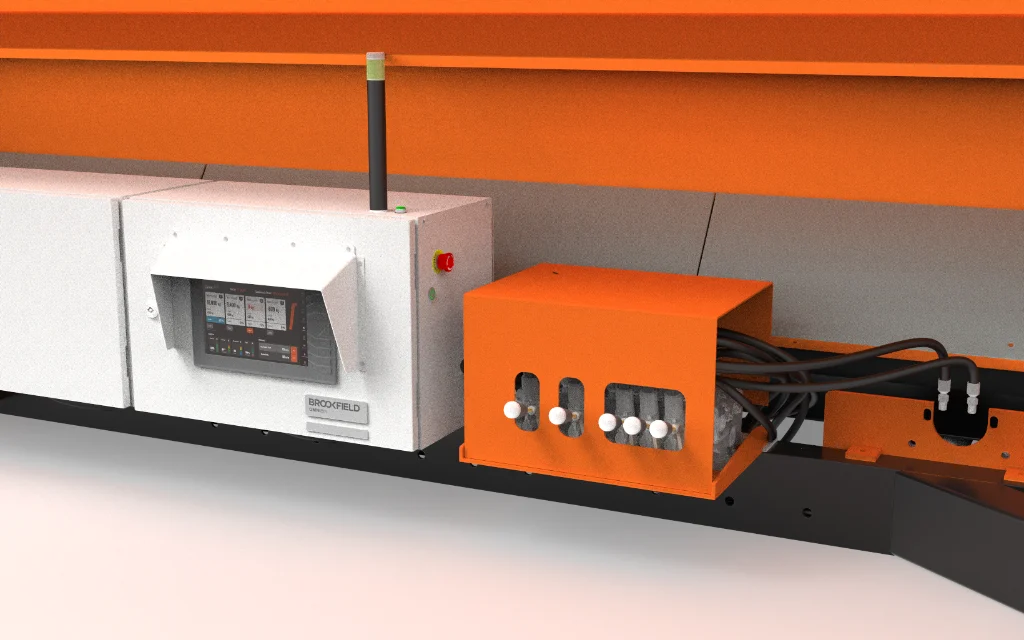

The control system
Active Control System
Precision. Control. Ease of use.
The Active Control System is the intelligence behind OmniBin Generation II. Purpose built from the ground up for seed and fertiliser delivery, it runs the machine from a 10″ touchscreen with real time monitoring and straightforward navigation, built for working outdoors.
- Set a target weight; the system delivers to it and shuts off
- Net load and door position for every compartment, live
- Camera feeds on screen
- Outload and main belt speeds set from the screen or the remote
- Onboard diagnostics with fault codes shown as they occur
- Loads recorded on the unit and synced back to the office
More on the machine
The parts of the job that used to need a second person, or a climb.

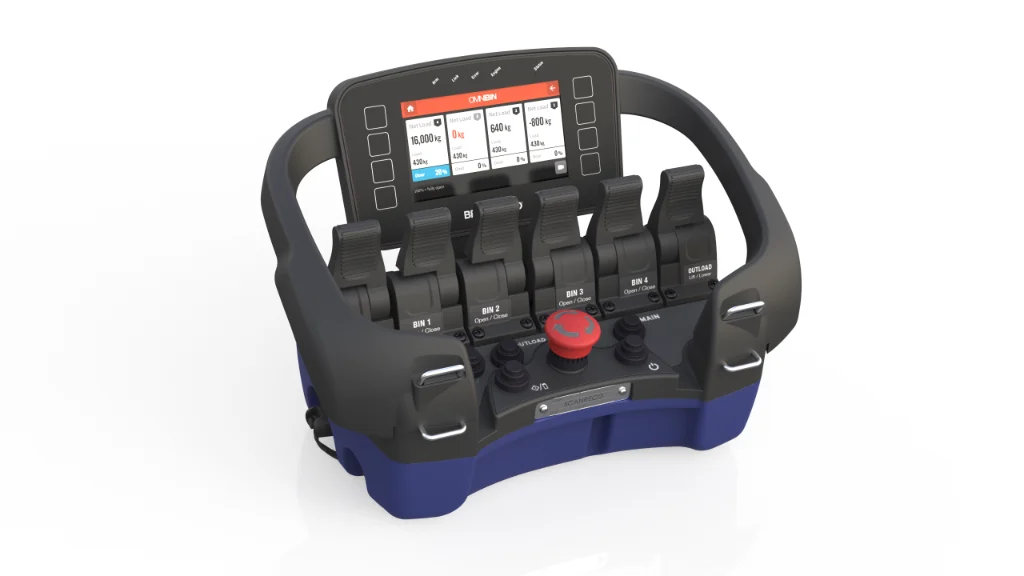

Fully remote control
Run it from where you are standing
Weight monitoring, camera feeds and belt speed adjustment all sit on the handheld remote, so the operator can work away from the machine.

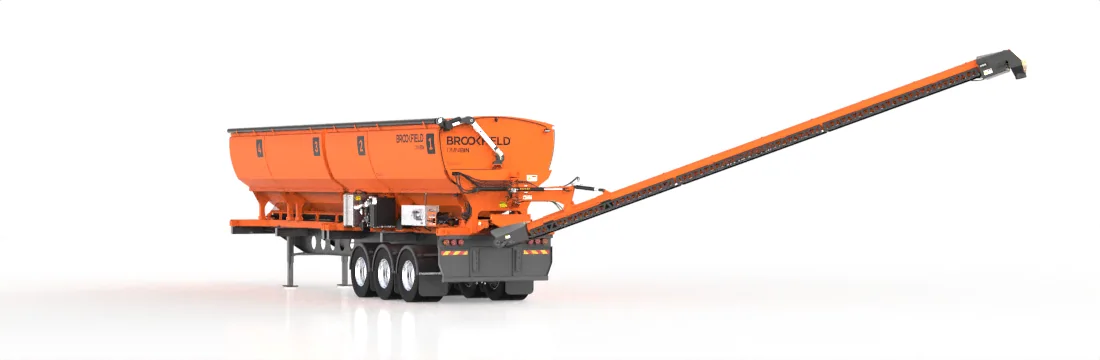

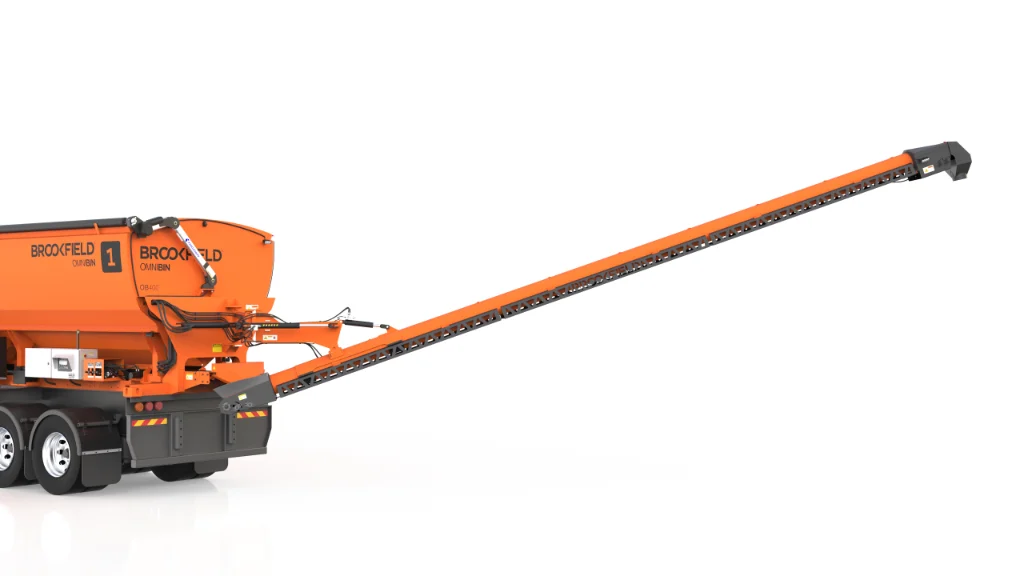

Auto stow and deploy
Outload arm, one button
Stow and deploy are automated on the outload arm and set up for one person operation, with the deployment sequence handled by the machine rather than by feel.
Automatic electric tarp
Open and close from the ground
The tarp is motorised and operated from ground level. There is no climbing onto the trailer to open or close it.
When something goes wrong
Diagnostics and manual override
Onboard diagnostics
Onboard diagnostics report system state back in real time and put fault codes on the screen as they occur, so the operator knows what the machine is doing without getting off it.
Hydraulic manual override
If an electronic control fault occurs, manual overrides on the hydraulics remain available, so the unit stays operable and the job can be finished.
Built in Cowra. Backed across the country.
OmniBin Generation II is built at 17 Waratah Street, Cowra, New South Wales, and supported directly by the manufacturer across Australia, with a reseller network behind it. One number gets you the factory.
Frequently asked questions
Questions about fit and support
Will it fit my truck?
It needs a 12.3 m flat top tray. It is 13.3 m long, 2.5 m wide and 2.4 m high plus trailer, with a 1.0 m rear overhang, and fixes on 20′ and 40′ container pins. Tare is 5.8 T.
When can I get one?
The first release is a limited allocation built for 2027 seeding delivery. Register now and we will tell you where you sit.
Can I monitor the compartments remotely?
Integrated load cells report each compartment’s weight in real time on the touchscreen and handheld remote. Belt speed adjustment and camera feeds are also available on the remote.
What happens if an electronic control fault occurs?
Onboard diagnostics display fault codes as they occur. Manual overrides on the hydraulics remain available if an electronic control fault occurs.
Who fixes it?
It is built in Cowra and supported directly by the manufacturer across Australia, with a reseller network behind it. One number gets you straight to the factory: 1800 774 274.
