Cross Bar

Versatile Inter-Row Renovation & Soil Management

Overview

The BROOKFIELD® CrossBar is purpose-built for viticulture and horticulture inter-row renovation and weed control. By reducing chemical dependency and improving soil health, the CrossBar delivers a smarter, more sustainable way to manage your orchard or vineyard.

Available in 1.5 m, 2.0 m and 3.0 m working widths, it’s the ideal implement for growers who need flexibility, performance, and durability in one machine.

Levelling & Seedbed Preparation

The CrossBar’s unique “cross” design provides exceptional levelling capability and seedbed preparation. With multiple disc combinations available, it adapts easily to suit your soil type. It can also be used for farm road levelling, repairing bogged tracks and rows, and smoothing uneven surfaces.

Replaceable Discs

Featuring 66 kg/m chain weight, the replaceable discs are engineered for durability and maximum results in varying soil conditions. This versatility ensures a longer service life and consistent performance.

Low Maintenance

The linkage model CrossBar combines compact simplicity with robust design. It requires no tools for adjustments, is easy to maintain, and operates efficiently with low horsepower requirements, making it cost-effective for day-to-day use.

Improve Water Intake

The CrossBar is ideal for lime and fertiliser incorporation, as well as light renovation to improve water infiltration. By reducing compaction and enhancing soil structure, it supports healthier, more productive crops.

Want to see how the CrossBar can improve your vineyard or orchard operations?

Our Gallery

Take a look at BROOKFIELD gear in action out in the field.

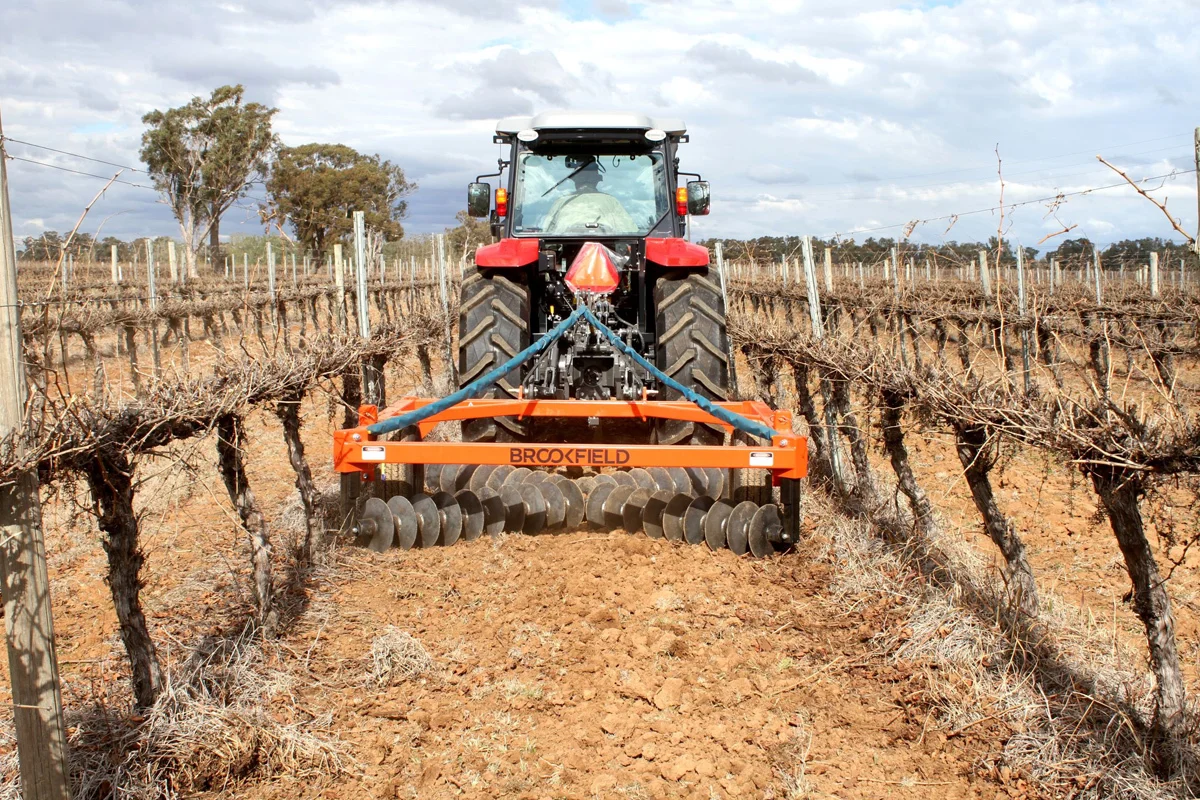

crossbar-sustainable-land-management-brookfield-innovative-agricultural-machinery-supplier

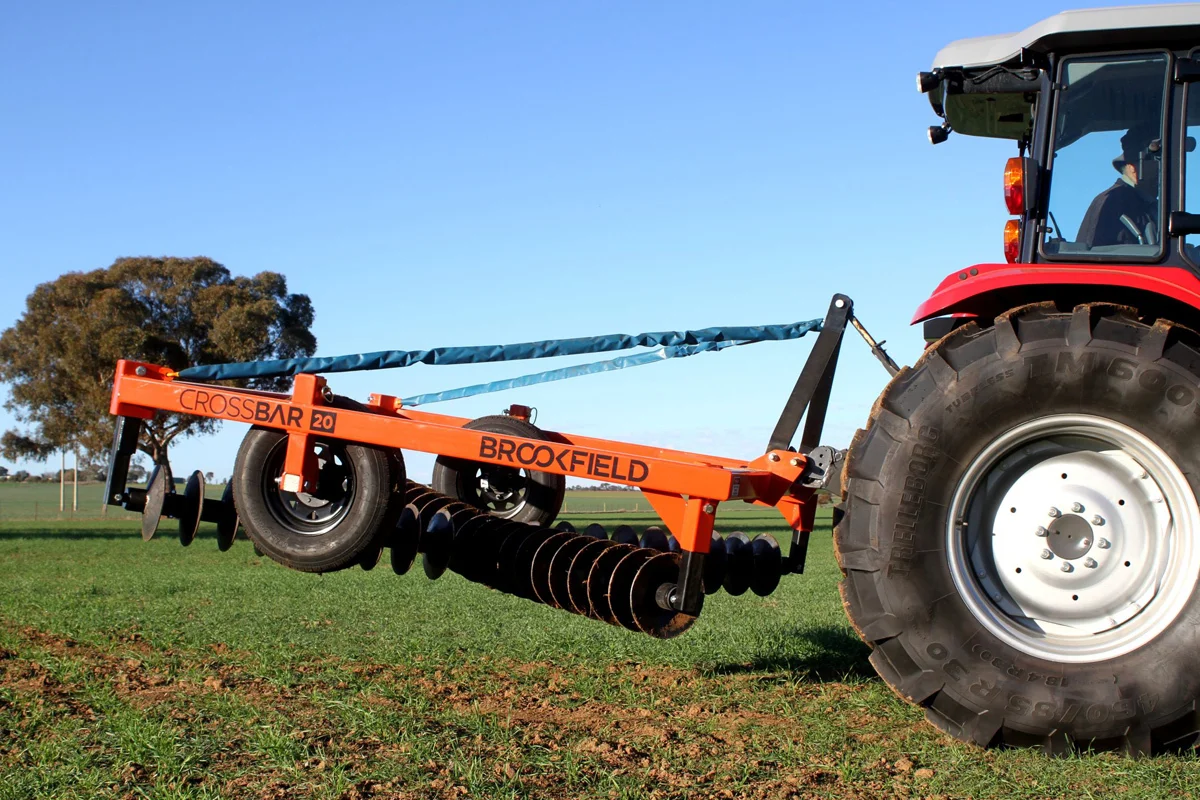

crossbar-versatile-agricultural-disc-brookfield-innovative-agricultural-machinery-supplier

Product Information

Model	Working Width	Transport Width	Transport Height	Transport Length	Weight*(tonne)
CB15	1.5m / 4.9ft	1.90m	0.70m	2.03m	336kg
CB20	2.0m / 6.5ft	2.40m	0.70m	2.53m	420kg
CB30	3.0m / 9.8ft	3.40m	0.70m	3.53m	540kg

CROSSBAR – Horsepower Requirement Guide

chain	Model CB15	Model CB20	Model CB30
DC60 RIGID FLEX	40	60	80

* Refer to tractor manufacturers specification for linkage capacity.
