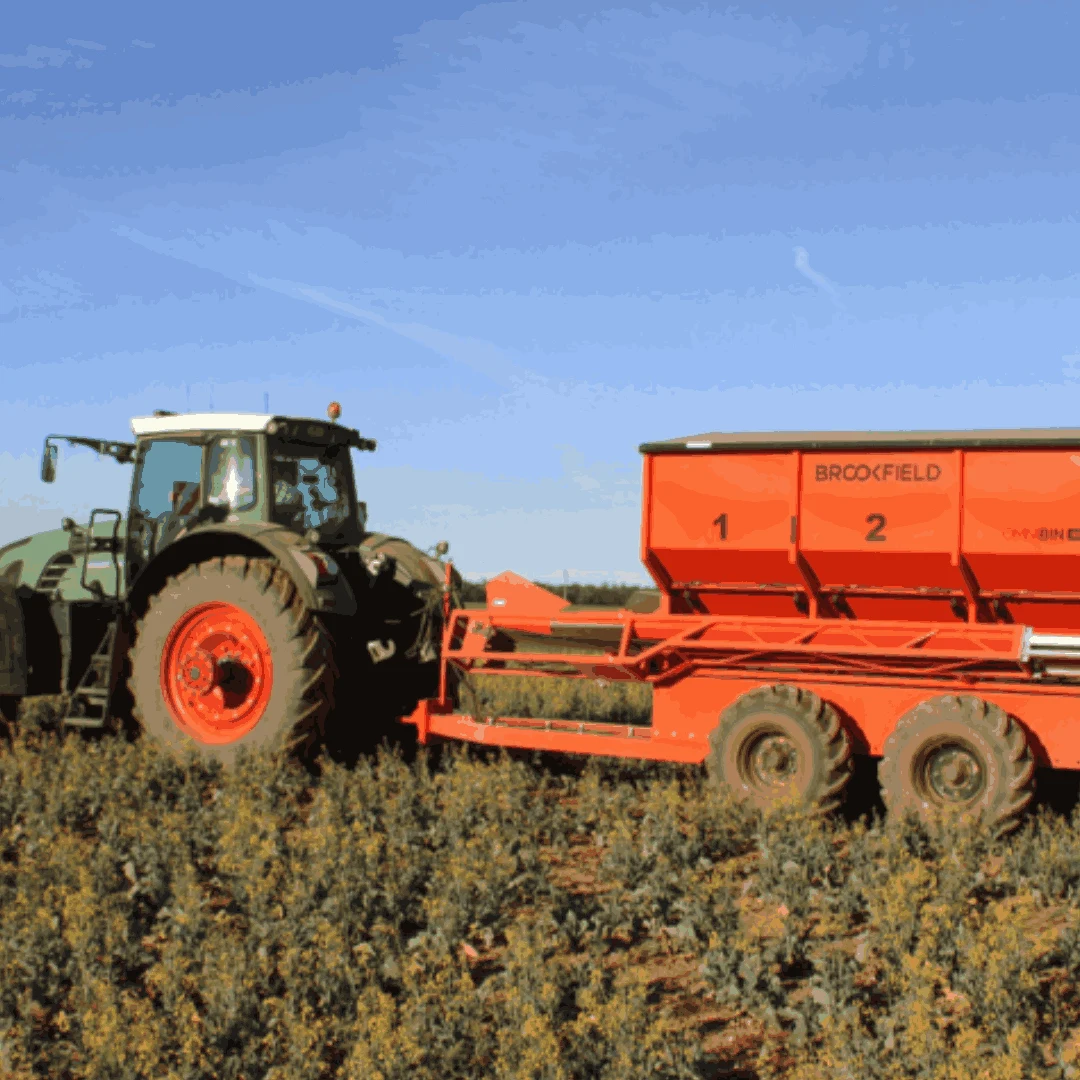

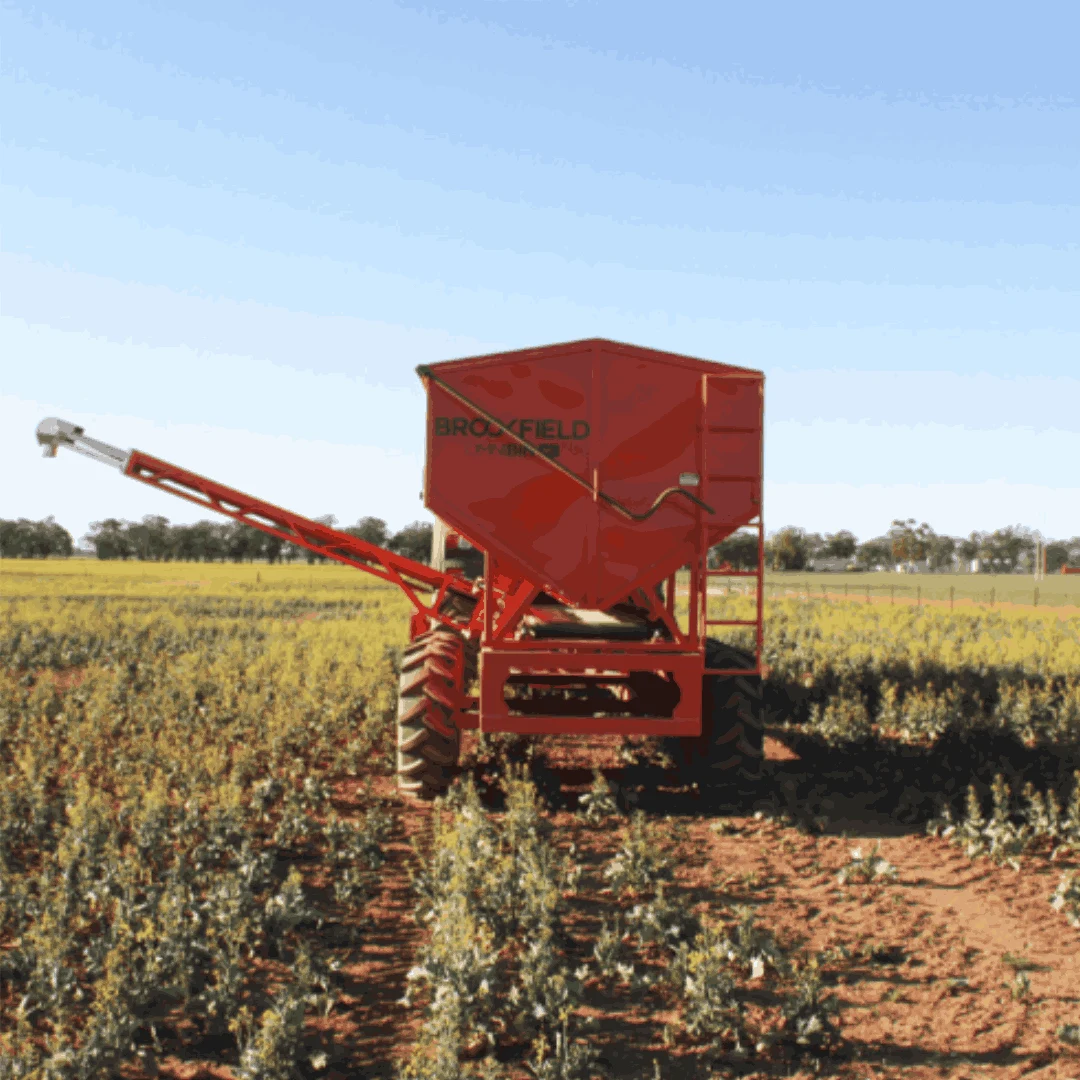

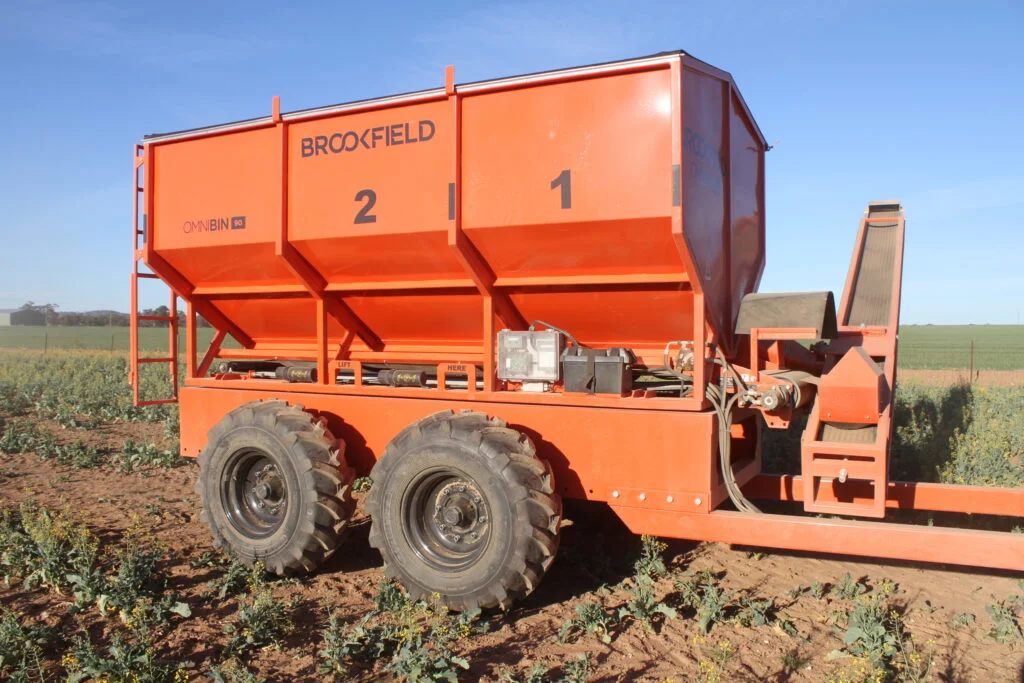

The OmniBin Mini Range has been designed as a compact option to our larger OmniBin range. We have developed a range of highly versatile commodity bins that are able to handle grain, stock feed, pellets, fertiliser and more.
The OmniBin Mini Range is a highly versatile commodity bin, for handling seed and fertiliser at sowing time as well as stock feed and general grain handling all year round.
What makes the BROOKFIELD™ OMNIBIN Mini Range unique?
The OmniBin Mini Range is the safest, cleanest and simplest bin available.
Features include:
- Full discharge conveyor belt system
- Self-cleaning
- Zero contamination
- Light tare weight
- Front or rear dump
- Side delivery feed-out conveyor
- Available in 6, 9, 12 or 15 cubic metre
Options include:
- Roll-over tarp
- Load cells
- 6m side conveyor
- Remote control
- Light kit
- Customised compartments
- Heavy duty trailer with single or dual axle
Models & Specs
| Capacity | OB60 | OB90 | OB120 | OB150 | |
|---|---|---|---|---|---|
| Tonnes | (av. wheat/urea) | 4.5 | 7 | 9 | 11.5 |
| Tonnes | (av. fertiliser) | 6 | 9 | 12 | 15 |
| Mounted on Chassis | OB60 | OB90 | OB120 | OB150 | |
| Dimensions | Length | 5.7m | 6.9m | 8.2m | 9.4m |
| Width | 2.5m | 2.5m | 2.5m | 2.5m | |
| Height | 3.1m | 3.1m | 3.1m | 3.1m | |
| Bin Only | OB60 | OB90 | OB120 | OB150 | |
| Dimensions | Length | 3.2m | 4.4m | 5.7m | 6.9m |
| Width | 2.3m | 2.3m | 2.3m | 2.3m | |
| Height | 2.0m | 2.0m | 2.0m | 2.0m | |
| Tray Length Required | 2.6m/8.5ft^ | 3.8m/12.5ft^ | 5.1m/16.7ft^ | 6.3m/20.7ft^ | |
| Conveyor Overhang | 1.4m | 1.4m | 1.4m | 1.4m | |
| Tare Weight (kg) | 950 | 1,400 | 1,850 | 2,300 |
^ Additional 250mm required for trailers with a head board
| Side Conveyor Model | OBSC60-MR |
|---|---|
| Height *Based on a chassis height of 1.1m | 2.5m |
| Reach | 3.5m |

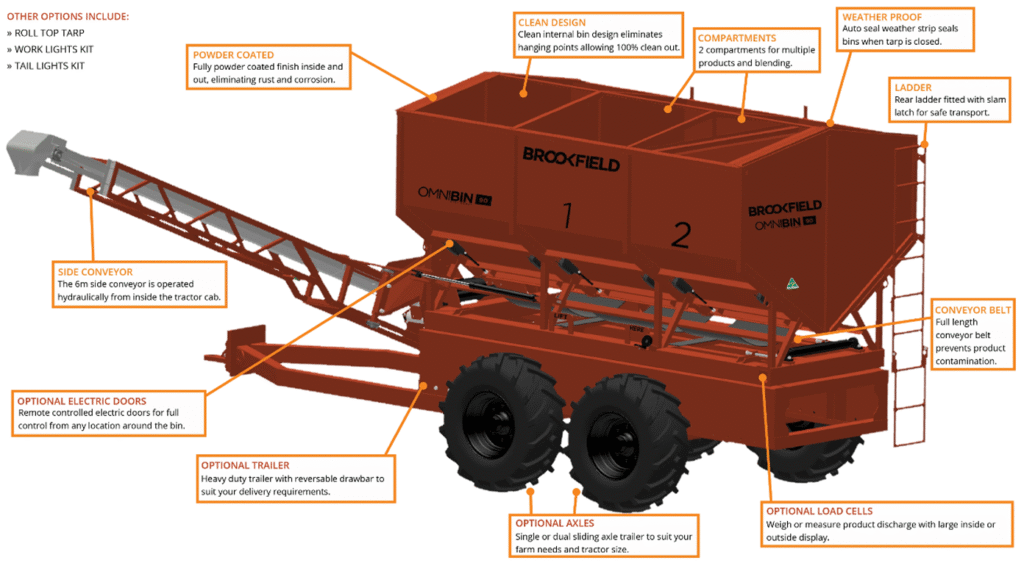

Features & Options
For more specific information, contact the BROOKFIELD® sales team on 1800 774 274 or sales@brookfield.net.au
